Welded Gabion Box

Easy to install

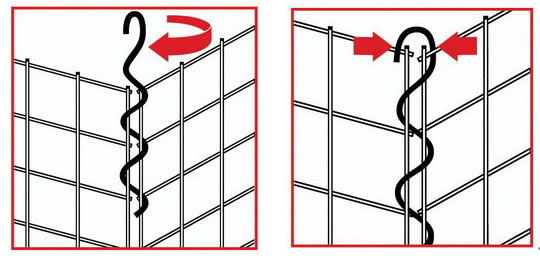

Field installation is quick and easy. In fact, installation time can be as much as 40% less than required by hex type gabions. With diaphragms and stiffeners installed,the gabion may be filled with standard loading equipment.After filling the gabion, a lid is placed on top and secured with spiral binders,lacing wire or "C" rings.

 Unlike hexagonal units, Feirui welded wire Gabion hold their shape better – they don't bulge out when filled .They are easy to handle,which means more work,less labor and highter productivity an the job.

 Feirui Welded wire Gabion are made by one of the nation's leading manufacturers of welded wire mesh. Each gabion is constructed of rugged hight tensile wire which is coated with a thick, cor-rosion-resistant layer of zinc. The wire is also available with a tough,durable PVC coating. The jality materials results in a longer,gabion life. feirui welded wire supplied from stock in a complete Custom sizes to fit unique site con-ailable on special order.Welded wire Gabion are made by one of the nation's leading manufacturers of welded wire mesh.

Coating Properyt	Test Method	Value
Tensile Strength	ASTM D638	2275Min
Elongation	ASTM D638	290% No Break
Hardness	ASTMD2240	75Min Shore A
Salt Sproy	ASTM B 117	3000hrs.no effect
Exposure to Ultraviolet Light	ASTM 1499 ASTMG23	3000hrs

Galvanized Coating

 ASTM A 90 Standard Tedst Method for Weight of Coating on Zinc-Coated(Galvanized) lron or Steel Articles ASTM A 641" Standard Specifications for Zinc- Coated (Galvanized ) Carbon Steel Wire "Riverdale mesh exceeds Class 3 zinc coating weights.

Welded Wire

 ASTM A 185" Standard Specifications for Steel Welded Wire Fabric ,Plain for Concrete Reinforcement ASTM A370 Standard Test Methods and Definitions for Mechanical Testing of Steel Products.



sizes of gabion	amount of diaphragm	Standard of gabion									spiral spindle
L*W*H(cm)		300*100	300*50	200*100	200*50	150*100	150*50	100*100	100*50	50*50	150	100	50
300 x 100 x100	0	4						2			8	8
	2	4						4			8	16	4
300 x 100 x50	0	2	2						2		8	4	4
	2	2	2						4		8	8	8
300 x 50 x100	0	2	2						2		8	4	4
	2	2	2						4		8	8	8
300 x 50 x50	0		4							2	8		16
	2		4							4	8		8
200 x 100 x100	0			4				2				16
	1			4				3				20
200 x 100 x50	0			2	2				2			12	4
	1			2	2				3			14	6
